Fluorographene
氟化石墨烯是一種重要的新型石墨烯衍生物。氟化石墨烯與石墨烯相比，雖然碳原子的雜化方式由sp2轉變?yōu)閟p3，但同時也保留了石墨烯的片層結構。因此，氟化石墨烯不但具有石墨烯一般大的比表面積，同時由于氟原子的引入極大地降低了石墨烯表面能，極大地增強了疏水疏油性，提高了熱穩定性、化學穩定性及抗腐蝕能力。氟化石墨烯的這些獨特性能使其可廣泛應用于抗磨潤滑、耐高溫腐蝕涂層等，同時由于氟化石墨烯的較長帶隙寬使其在納米電子器件、光電子器件以及熱電裝置等領域具有潛在的應用前景。此外，由于氟化石墨烯基氟碳材料具有發達的比表面和孔結構，且氟含量的不同對能帶結構具有可調節性，導致其具有獨特的導電性能，用于鋰一次電池正極材料時具有與電解液接觸界面大、鋰離子擴散速度快等特點，用氟化石墨烯做正極材料的鋰原電池具有能量密度高、放電平臺高且平穩、使用溫度范圍寬、存儲壽命極長等優點，在航空航天和高端民用領域有極大的應用潛力。
Fluorographene is an important graphene derivative. Compared with graphene, fluorographene retained the lamellar structure of graphene although the carbon atoms were hybridized from sp2 to sp3. As a result, fluorographene has not only large specific surface area, at the same time due to the introduction of fluorine atoms, the surface energy of graphene was greatly reduced, the property for hydrophobic and oleophobic was greatly enhanced, while the thermal stability, chemical stability and corrosion resistance were largely improved. Due to its unique properties, fluorographene can be widely used in the fields of anti-wear lubrication, high temperature corrosion resistant coating, at the same time, due to its wider bandgap, fluorographene has potential applications prospect in nano-electronic devices, photoelectronic devices, thermoelectric devices and other fields. In addition, because the fluorocarbon materials have fairly developed specific surface and pore structure and unique conductivity, the lithium primary batteries will have large contact interface with electrolyte and fast lithium ion diffusion speed, when fluorographene used as cathode material of lithium batteries. These lithium primary batteries have the advantages of high energy density, high discharge voltage, stable discharge curve, wide operating temperature, extremely long shelf life, which has great application potential in the aerospace and high-end civil field.
電池性能 Battery performance

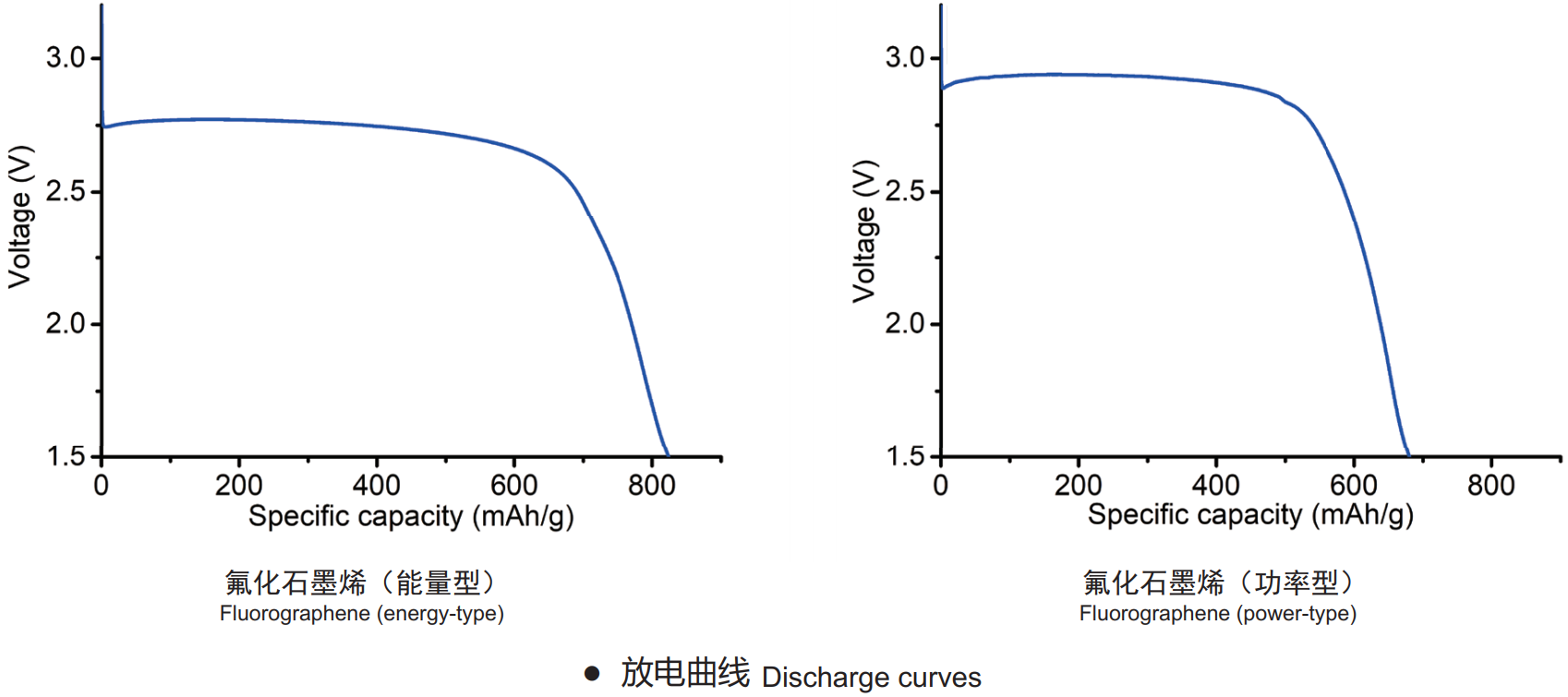

氟化石墨烯作為正極材料應用于鋰氟化碳電池，在C/10的放電倍率下，可適用于能量型（放電平臺≥2.6V，比容量＞800mAh/g）和功率型（放電平臺≥2.85V，比容量＞750mAh/g）一次電池。
Fluorographene is used as cathode material of lithium-fluorocarbon batteries, at the discharge rate of C/10, it can be applied in energy-type and power-type primary batteries. The discharge platform of energy-type fluorographene is equal or greater than 2.6V, the specific capacity is more than 800mAh/g, while the discharge platform of power-type fluorographene is equal or greater than 2.85V, the specific capacity is more than 750mAh/g.
| 產品名 (Product name) | 純度 (Purity) | 氟含量 (F Content) | 粒徑(D50) (Particle Size) | 層數 (Layers) | 振實密度 (Tap density) |
| 氟化石墨烯 (Fluorographene) | ≥99% | 45-65 wt.% | ≤20μm | ≤15 | ≥0.2g/cm3 |
氟化石墨烯用于鋰一次電池正極材料時具有與電解液接觸界面大、鋰離子擴散速度快等特點，用氟化石墨烯做正極材料的鋰原電池具有能量密度高、放電平臺高且平穩、使用溫度范圍寬、存儲壽命極長等優點，在航空航天和高端民用領域有極大的應用潛力。此外，氟化石墨烯在重防腐涂料、自清潔材料、潤滑油/脂添加劑等方面具有極大的應用潛力。
When fluorographene used as cathode material of lithium primary batteries, the batteries will have large contact interface with electrolyte and fast lithium ion diffusion speed. These lithium primary batteries have the advantages of high energy density, high discharge voltage, stable discharge curve, wide operating temperature, extremely long shelf life, which has great application potential in the aerospace and high-end civil field. In addition, fluorographene has great application potential in heavy anticorrosive coatings, self-cleaning materials and lubricating oil/grease additives.
包裝規格有10g、50g、100g、500g、1kg、5kg和10kg以上規格，以滿足科研院所及生產型企業的不同要求。根據量的不同有塑料瓶直接包裝、雙層塑料袋包裝、外套塑料桶或紙板桶包裝。產品最小起訂量10g。
The packing specifications are 10g, 50g, 100g, 500g, 1kg, 2kg, 5kg and 10kg above, to meet the different requirements of scientific research institutes and production enterprises. According to different amount, fluorographite are packed by plastic bottles, double plastic bags, plastic bucket or cardboard bucket. The minimum order quantity is 10g.
