Fluorographite
氟化石墨是氟原子插入石墨層間的一種石墨層間化合物，粉末狀固體，顏色隨氟碳比的提高逐漸由黑變?yōu)榛野祝敝涟咨?。氟化石墨具有極低的表面能、優異的化學和熱穩定性、極好的潤滑性能以及超高理論比容量，使其在固態潤滑、防腐防污涂料、鋰電池和其它應用領域具有良好的應用前景。氟化石墨根據采用原料不同可細分為氟化鱗片石墨、氟化球形石墨、氟化膨脹石墨及氟化納米石墨等種類。

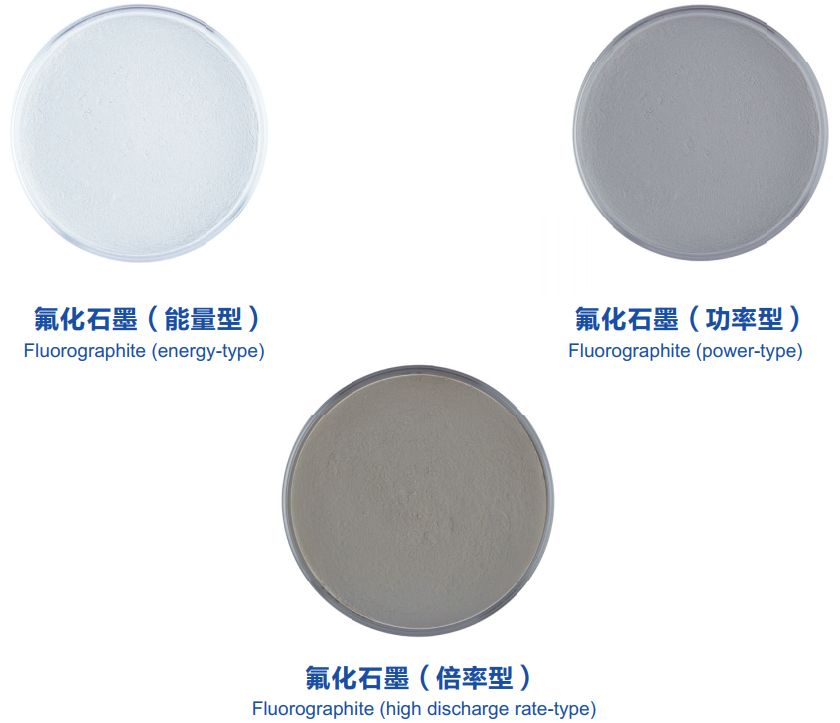

Fluorographite is a kind of graphite interlayer compound in which fluorine atoms are inserted into graphite layers. Fluorographite is a powder solid, and its color gradually changes from black to gray to white with the increasing of F/C ratio. Fluorographite has been widely used in solid lubrication, corrosion protective and antifouling coatings Li-CFx batteries and other fields due to the merits of extremely low surface energy, excellent chemical and thermal stability, outstanding lubrication performance and super theoretical specific capacity. Fluorographite can be subdivided into fluorinated flake graphite, fluorinated spherical graphite, fluorinated expanded graphite and fluorinated nano-graphite according to different raw materials.

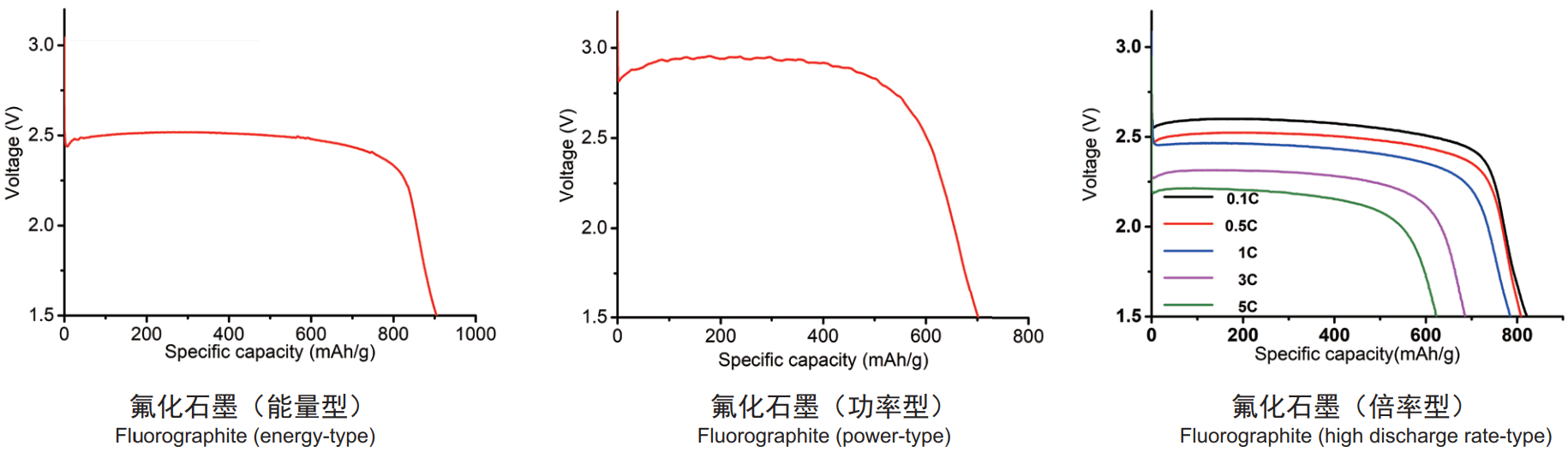

電化學性能 Electrochemistry performance
氟化石墨作為正極材料應用于鋰氟化碳電池，在C/10的放電倍率下，可適用于能量型、功率型和倍率型一次電池。
Fluorographite is used as cathode material of lithium-fluorocarbon batteries, at the discharge rate of C/10, it can be applied in energy-type, power-type and high discharge rate-type primary batteries.
能量型氟化石墨放電平臺≥2.5V，比容量＞800mAh/g，比能量高達2000Wh/kg以上，是一種性能優秀的鋰一次電池正極材料。
The discharge platform of energy-type fluorographite is equal or greater than 2.5V, the specific capacity of energy-type fluorographite is more than 800mAh/g and its specific energy is more than 2000Wh/kg, which is a kind of cathode material with excellent performance in lithium primary battery.
功率型氟化石墨放電平臺≥2.8 V，比容量＞700 mAh/g，比能量高達1900Wh/kg以上，綜合性能極佳，在不同的溫度和放電電流下均有良好的性能表現，適用于需要更高放電電壓和功率密度的場合。
The discharge platform of power-type fluorographite is equal or greater than 2.8V, the specific capacity of power-type fluorographite is more than 700mAh/g and its specific energy is more than 1900Wh/kg. The combination properties of power-type fluorographite are excellent, which exhibits prominent performance at different temperature and discharge current, it is suitable for the situation requiring higher discharge voltage and higher power density.
倍率型氟化石墨由能量型氟化碳材料改性而來，大幅提升了導電性，可實現高倍率放電。在5C倍率下放電平臺≥2V，相比0.1C比容量保持率≥70%，適用于對放電電壓無特殊要求，但需要大電流放電的場合。
The high discharge rate-type fluorographite is modified by the energy-type fluorographite, the modification greatly improves the conductivity, as a result it can discharge at the high rate. The discharge platform of high discharge rate-type fluorographite is equal or greater than 2V at the discharge rate of 5C, comparing with 0.1C rate the capacity retention ratio is equal or greater than 70%. It is suitable for the occasions without special requirement for discharge voltage but requiring high current discharge.
| 產品名 (Product name) | 純度 (Purity) | 氟含量 (F Content) | 粒徑(D50) (Particle Size) | 振實密度 (Tap density) |
| 氟化石墨 (Fluorographite) | ≥99% | 45-65 wt.% | ≤20μm | ≥0.9g/cm3 |
氟化石墨用于鋰一次電池正極材料具有能量密度高、放電平穩、使用溫度范圍寬、存儲壽命極長等優勢，在航天和高端民用領域有非常大的應用潛力。此外，氟化石墨還可用作固體潤滑劑、潤滑油和潤滑脂的添加劑以及防腐防污涂料。
Fluorographite is a new type of fluorocarbon material, as the lithium primary battery cathode material, fluorographite has the advantages of high energy density, stable discharge, wide temperature range and long storage life, it has great application potential in aerospace and some high-end civil fields. In addition, fluorographite can also be used as an additive of solid lubricant and grease as well as anticorrosive and antifouling coating.
包裝規格有10g、50g、100g、500g、1kg、5kg和10kg以上規格，以滿足科研院所及生產型企業的不同要求。根據量的不同有塑料瓶直接包裝、雙層塑料袋包裝、外套塑料桶或紙板桶包裝。產品最小起訂量為10g。
The packing specifications are 10g, 50g, 100g, 500g, 1kg, 2kg, 5kg and 10kg above, to meet the different requirements of scientific research institutes and production enterprises. According to different amount, fluorographite are packed by plastic bottles, double plastic bags, plastic bucket or cardboard bucket. The minimum order quantity is 10g.
